Understanding Wheel Offset and Backspacing

When it comes to customizing your vehicle, choosing the right set of wheels is crucial. However, beyond the aesthetics and size of the wheel, two critical measurements play a pivotal role in ensuring the perfect fitment: wheel offset and backspacing. These terms might sound technical, but understanding them can make a significant difference in your vehicle's performance and appearance.

What is Wheel Offset?

Wheel offset refers to the distance between the wheel's mounting surface (where it bolts to the vehicle) and the wheel's centerline. It's usually measured in millimeters and can be positive, negative, or zero.

• Positive Offset: This means the mounting surface is closer to the outside (or wheel face). Most modern vehicles come with a positive offset.
• Negative Offset: Here, the mounting surface is closer to the inside of the wheel. This type of offset is common in deep dish wheels.
• Zero Offset: The mounting surface is even with the centerline of the wheel.

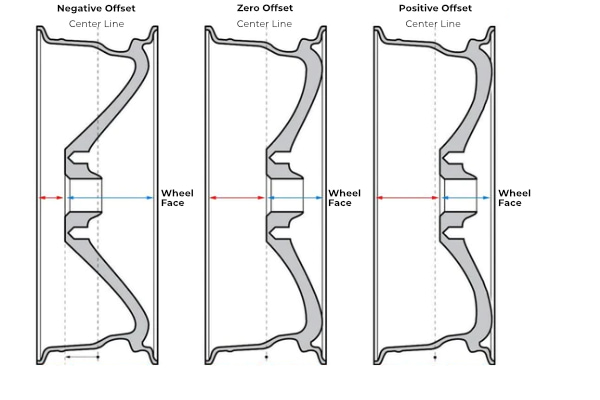

To better visualize the differences between positive, zero, and negative offsets, refer to the diagram below. As you can see, the wheel mounting surface's position varies, affecting how the wheel sits in relation to the vehicle's chassis.

Why is Wheel Offset Important?

The correct offset ensures that the wheel and tire assembly aligns properly with the vehicle's suspension, preventing any rubbing against the inner wheel well or the suspension components.

What is Backspacing?

Backspacing, on the other hand, is the distance from the innermost edge of the wheel to the mounting surface. It's typically measured in inches. The more the backspacing, the deeper the wheel will sit in the wheel well.

Understanding backspacing can be made simpler with a reference chart. The chart below provides a breakdown of wheel width in relation to backspace and offset. This can serve as a handy guide when considering aftermarket wheels for your vehicle.

How are Wheel Offset and Backspacing Related?

While both measurements determine how the wheel will sit in relation to the vehicle's chassis, they are measured from different points. However, changing one can impact the other. For instance, increasing the offset can reduce the backspacing and vice versa.

Wrap-up

Understanding wheel offset and backspacing is paramount for those aiming to enhance their vehicle with aftermarket wheels. These measurements not only guarantee the perfect fitment but also ensure your vehicle operates at its peak performance and safety levels. Before diving into a purchase, it's always wise to seek advice from experts in the field.
